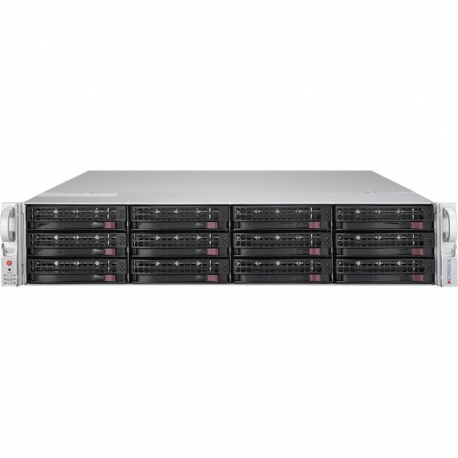

Supermicro SuperStorage SSG-6028R-E1CR12H

Supermicro SuperStorage SSG-6028R-E1CR12H is a 2U high-density storage platform designed for demanding, always-on data center and enterprise workloads. It combines dual Intel Xeon E5-2600 v3/v4 processors with large memory capacity and flexible storage connectivity in a compact chassis.

Compute platform

• Socket: LGA 2011 with dual-CPU support for Intel Xeon E5-2600 v3/v4 family
• Maximum CPU TDP: 145W, enabling deployment of high-core-count processors
• Designed for multi-threaded, virtualized, and storage-oriented applications

Memory subsystem

• 16 DIMM slots for DDR4-2400 ECC memory
• Maximum capacity: up to 2TB ECC 3DS LRDIMM or 512GB ECC RDIMM
• ECC support enhances data integrity and system reliability in critical workloads

Storage architecture

• Chassis: 2U rackmount storage server
• 12x 3.5" hot-swap bays (optionally 2.5"), enabling high-capacity or performance-focused drive configurations
• Main drive interfaces: SAS and SATA for HDDs/SSDs
• Additional performance tier: +4x NVMe for low-latency, high-IOPS workloads
• Hot-swap design supports non-disruptive drive replacement and maintenance

Expansion and connectivity

• PCIe slots: 1x PCI-E 3.0 x16 and 6x PCI-E 3.0 x8 (low-profile AOC) for RAID, HBA, network or accelerator cards
• Network interfaces: 2x RJ-45 10Gb/s for high-throughput data transfer and link redundancy
• M.2 NVMe slots: 0 (storage expansion via front bays and PCIe-based solutions)
• USB ports: 2x USB 3.0 (rear) and 2x USB 2.0 (rear) for service, deployment and peripheral connectivity

Power and availability

• Power supplies: 2x 920W redundant PSU for continuous operation
• Energy efficiency: 80 Plus Platinum, reducing power consumption and heat output
• Redundant power design improves fault tolerance and service continuity

Operational benefits

• High storage density in a 2U form factor for space-constrained racks
• Flexible combination of capacity (SAS/SATA) and performance (NVMe) tiers
• Scalable memory and PCIe expansion for virtualization, backup, and data-intensive services
• Designed for environments where uptime, throughput, and data integrity are critical
• Manufacturer warranty: 36 months
