Supermicro SuperStorage SSG-6029P-E1CR24H

The Supermicro SuperStorage SSG-6029P-E1CR24H is a 2U high-density storage server platform designed for demanding, data‑intensive environments. It combines dual-socket compute performance with large memory capacity and extensive front-accessible storage.

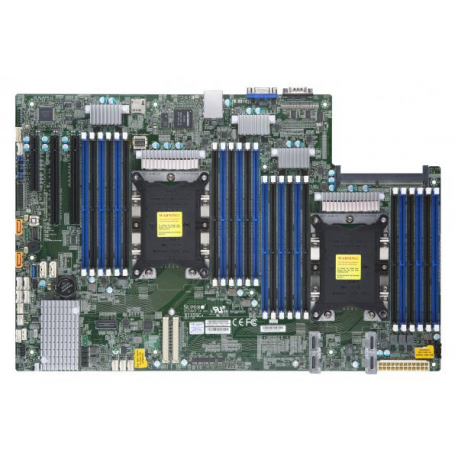

Compute and memory platform

• Socket: LGA 3647 with dual CPU support
• Compatible with 1st/2nd Gen Intel® Xeon® Scalable processors
• Maximum CPU TDP: 165W
• 24 DIMM slots for high-density configurations
• Up to 6TB DDR4-2933MHz 3DS ECC RDIMM/LRDIMM

This configuration enables consolidation of compute and storage workloads on a single 2U platform, supporting memory‑intensive applications and large in‑memory datasets.

Storage subsystem

• Form factor: 2U rackmount
• 24x hot-swap drive bays
• Drive size: 3.5" (optionally 2.5" drives)
• Drive interface: SAS3 + SATA3 (main/optional)

The front-accessible hot-swap bays allow non-disruptive drive replacement and flexible deployment of capacity or performance-optimized media, depending on workload requirements.

Expansion and connectivity

• PCIe: 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slots
• Networking: support for installation of NICs via SIOM card (Supermicro I/O Module)
• USB ports: 3x USB 3.0 (2 rear, 1 Type A)
• M.2 NVMe slots: 0

PCIe 3.0 slots and SIOM-based networking provide flexibility for adding high-speed network adapters, HBAs or RAID controllers according to the infrastructure design.

Power and reliability

• Power supply: 2x 1600W redundant
• Energy efficiency: 80 Plus Titanium
• Redundant power design for increased availability
• Manufacturer warranty: 36 months

The redundant 1600W 80 Plus Titanium power supplies are engineered for high efficiency under load and to minimize downtime in case of PSU failure.

Use-case oriented benefits

• High storage density in 2U for large datasets and scalable capacity
• Dual-socket architecture for compute-intensive storage workloads
• Large ECC memory footprint for caching, databases and virtualized environments
• Modular networking via SIOM for tailoring bandwidth and topology
• Serviceability via hot-swap drives and redundant power supplies

The Supermicro SuperStorage SSG-6029P-E1CR24H is suitable wherever a combination of dense storage, robust compute resources and high availability is required within a compact 2U rack footprint.
