Supermicro SuperStorage SSG-5029P-E1CTR12L

The Supermicro SuperStorage SSG-5029P-E1CTR12L is a 2U enterprise storage server platform designed for high-density, high-availability deployments. It combines robust compute resources with scalable storage capacity and advanced power efficiency for data-intensive environments.

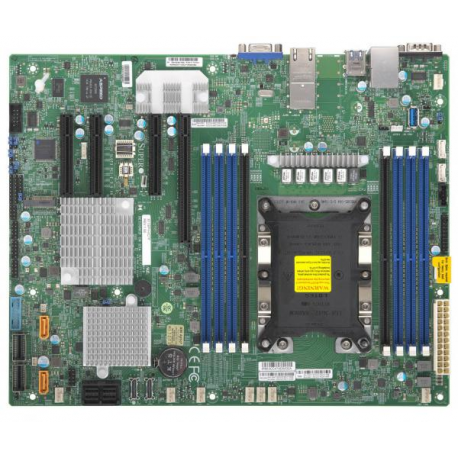

Compute platform

• Socket: LGA 3647, single-socket configuration
• CPU support: 1st/2nd Gen Intel® Xeon® Scalable processors
• Maximum CPU TDP: up to 205 W for demanding workloads

Memory subsystem

• DIMM slots: 8
• Maximum memory capacity: up to 2 TB
• Memory type: 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
• ECC support for enhanced data integrity and system stability

Storage capabilities

• Form factor: 2U rackmount chassis
• Drive bays: 12x hot-swap 3.5" bays (optionally 2.5")
• Drive interface: SAS3 + SATA3 for flexible HDD/SSD configurations
• M.2: 1x M.2 NVMe slot for high-speed OS or cache usage

Expansion and connectivity

• PCIe slots:
  • 1x PCI-E 3.0 x16
  • 2x PCI-E 3.0 x8
  • 1x PCI-E 2.0 x4 (mechanical x8)
• Network interfaces: 2x RJ-45 10 Gb/s for high-throughput connectivity
• USB ports:
  • 5x USB 3.0 (2 rear + 2 optional + 1 Type A)
  • 8x USB 2.0 (2 rear + 6 optional)

Power and reliability

• Power supply: 800 W total capacity
• Redundancy: 2x hot-plug PSUs for high availability
• Energy efficiency: 80 Plus Titanium certification
• Manufacturer warranty: 36 months

Operational advantages

• High storage density with 12 hot-swap bays for scalable capacity
• Support for modern Intel® Xeon® Scalable CPUs and large ECC memory footprint for compute- and memory-intensive tasks
• Redundant, high-efficiency power supplies to reduce downtime risk and optimize energy usage
• Dual 10 GbE interfaces enabling fast data transfer and integration into high-bandwidth networks
• Flexible PCIe expansion for additional controllers or network adapters as required by the deployment scenario
