Supermicro SuperStorage SSG-6029P-E1CR12H

The Supermicro SuperStorage SSG-6029P-E1CR12H is a high-density 2U storage server platform designed for demanding, I/O-intensive workloads and virtualized environments. It combines dual-socket compute performance with flexible storage configurations and high energy efficiency.

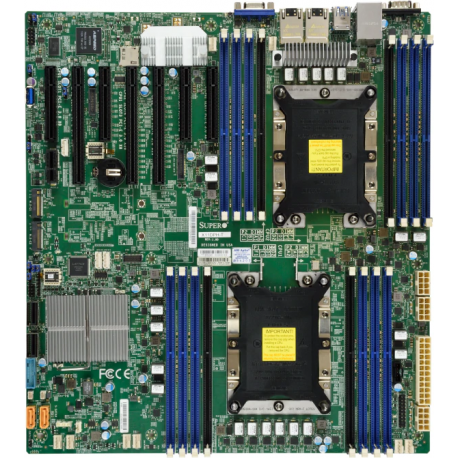

Compute platform

• Socket: LGA 3647
• CPU support: 1st/2nd Gen Intel Xeon Scalable processors
• Max. CPU TDP: up to 205 W per processor
• Processor sockets: Dual (2-way)

Memory subsystem

• Number of DIMM slots: 16
• Maximum memory capacity: up to 4 TB
• Memory type: 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
• ECC support for improved reliability and data integrity

Storage and expansion

• Form factor: 2U rackmount chassis
• Drive bay size: 3.5" (optional 2.5" configuration)
• Hot-swap drive bays: 12x front-access
• Primary drive interfaces: SAS + SATA
• Optional drive interfaces: SAS + SATA + 4x NVMe (for higher throughput and lower latency)
• M.2 NVMe slots: 2 (ideal for OS, cache or metadata)
• PCIe expansion: 3x PCI-E 3.0 x16; 4x PCI-E 3.0 x8 for HBAs, RAID, NICs or accelerators

Network and connectivity

• Network interfaces: 2x RJ-45 10 Gb/s for high-bandwidth connectivity
• USB ports: 5x USB 3.0 (4x rear, 1x internal Type-A) for service, maintenance or boot media

Power and reliability

• Power supply capacity: 1200 W
• Number of power supplies: 2 (redundant configuration)
• Energy efficiency: 80 Plus Titanium certification
• Redundant power design for higher availability and reduced downtime risk
• Manufacturer warranty: 36 months

Operational benefits

• High storage density in a 2U footprint, suitable for data-intensive applications.
• Flexible mix of SAS, SATA and optional NVMe to match performance and capacity requirements.
• Dual 10GbE and multiple PCIe slots support scalable networking and storage fabrics.
• ECC memory and redundant power increase platform reliability for critical workloads.
• 80 Plus Titanium power supplies improve energy efficiency and can help reduce operating costs.
