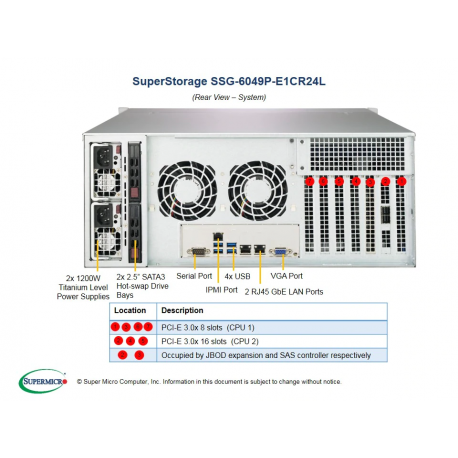

Supermicro SuperStorage SSG-6049P-E1CR24L

Supermicro SuperStorage SSG-6049P-E1CR24L is a 4U high-density storage platform designed for demanding data-intensive workloads. It combines dual-socket compute performance with large-capacity hot-swap storage and high-efficiency redundant power.

Compute and memory subsystem

• Socket: LGA 3647
• CPU support: 1st/2nd Gen Intel^® Xeon^® Scalable processors
• Number of CPU sockets: Dual
• Max CPU TDP: up to 205 W per processor
• Memory slots: 16 DIMM sockets
• Maximum memory: up to 4 TB 3DS ECC DDR4-2933 RDIMM/LRDIMM

Storage and expansion

• Form factor: 4U rackmount chassis
• Drive bay size: 3.5" (optional 2.5" support)
• Hot-swap drive bays: 24 front-access bays
• Drive interfaces (primary/optional): SAS3 + SATA3
• M.2 NVMe slots: 2 for high-speed boot or cache devices
• PCI Express slots: 3x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8 for HBAs, RAID, NICs or accelerators

Connectivity

• Network interfaces: 2x RJ-45 10 Gb/s ports for high-throughput networking
• USB ports: 5x USB 3.0 (4x rear, 1x internal Type-A)

Power and reliability

• Power supply capacity: 1200 W
• Number of power supplies: 2 for redundancy
• Redundant power: Yes
• Energy efficiency: 80 Plus Titanium certified
• Manufacturer warranty: 36 months

Operational benefits

• High storage density in a 4U chassis with 24 hot-swap bays, enabling large-capacity and scalable deployments.
• Dual-socket architecture with support for high-TDP Xeon Scalable CPUs ensures strong compute performance for storage-centric applications.
• Up to 4 TB of ECC DDR4 memory allows consolidation of memory-intensive workloads with improved data integrity.
• Dual 10GbE interfaces provide high-bandwidth connectivity for backup, virtualization or software-defined storage environments.
• Redundant 1200 W 80 Plus Titanium power supplies increase availability and reduce energy consumption in continuous operation.
• Multiple PCIe 3.0 slots and dual M.2 NVMe enable flexible configuration with RAID controllers, high-speed NICs or cache drives according to project requirements.
