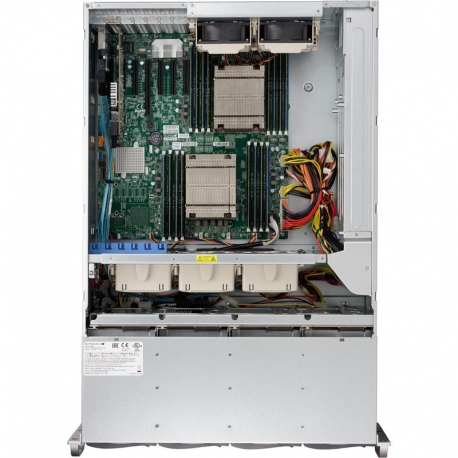

Supermicro SuperStorage SSG-6048R-E1CR24N

Supermicro SuperStorage SSG-6048R-E1CR24N is a high-density 4U storage platform designed for demanding data-intensive workloads. It combines dual-socket compute performance with large-scale hot-swap storage capacity and high network bandwidth.

Processor and memory subsystem

• Socket type: LGA 2011
• CPU support: Dual Intel Xeon E5-2600 v3/v4
• Maximum CPU TDP: 145 W
• Memory slots: 24 DIMM slots
• Maximum memory capacity: up to 3 TB ECC 3DS LRDIMM or 1.5 TB ECC RDIMM/LRDIMM
• Memory type and speed: DDR4-2400 MHz

Storage architecture

• Form factor: 4U rackmount chassis
• Drive bay size: 3.5" (optional support for 2.5" drives)
• Hot-swap drive bays: 24 front-access bays
• Drive interface (primary/optional): SAS3 + SATA3
• M.2 NVMe slots: 0

Expansion and connectivity

• PCI Express slots:
  • 2x PCI-E 3.0 x16
  • 3x PCI-E 3.0 x8
  • 1x PCI-E 2.0 x4 (in x8 slot)
• Network interfaces: 4x RJ-45 10 Gb/s
• USB ports:
  • 3x USB 3.0 (2 rear, 1 Type-A)
  • 2x USB 2.0 (front)

Power and reliability

• Power supply capacity: 920 W
• Number of power supplies: 2
• Redundant power: Yes
• Efficiency rating: 80 Plus Platinum
• Manufacturer warranty: 36 months

Key technical advantages

• High-density storage with 24x 3.5" hot-swap bays for scalable capacity.
• Dual Intel Xeon E5-2600 v3/v4 support for balanced compute and storage workloads.
• Up to 3 TB ECC DDR4 memory for memory-intensive applications and caching.
• Four integrated 10 Gb/s Ethernet ports for high-throughput data access and replication.
• Redundant 920 W 80 Plus Platinum power supplies for increased availability and energy efficiency.
• Rich PCIe expansion for additional HBAs, RAID controllers or network adapters.
