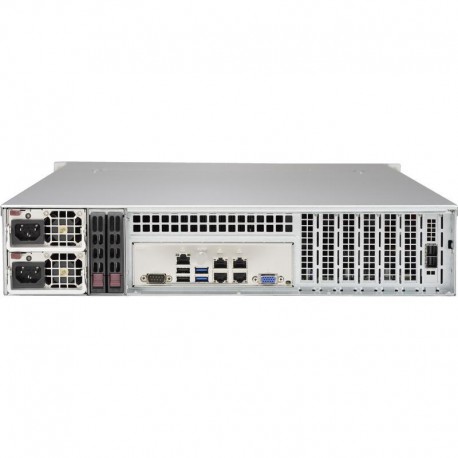

Supermicro SuperStorage SSG-5028R-E1CR12L

Supermicro SuperStorage SSG-5028R-E1CR12L is a 2U high-density storage platform designed for environments that require reliable, scalable and energy-efficient disk subsystems. The chassis supports a single Intel Xeon E5-2600 v3/v4 processor (LGA 2011) with TDP up to 145 W, providing a balanced combination of compute performance and storage throughput.

The platform is optimized for large memory configurations, offering 8 DIMM slots and support for up to 1 TB ECC 3DS LRDIMM DDR4-2400. ECC and LRDIMM technologies help increase memory capacity and improve data integrity, which is critical for storage, virtualization and data-intensive applications.

A key element of this system is its storage subsystem. The server provides:

• 12x 3.5" hot-swap drive bays with optional 2.5" support
• SAS3 + SATA3 drive interface for flexible disk configurations

This configuration enables building high-capacity disk arrays with a choice of performance and redundancy levels, depending on the selected drives and RAID setup.

For expansion and connectivity, the platform offers a wide range of PCIe slots:

• 3x PCI-E 3.0 x8 (1 in x16 slot)
• 1x PCI-E 2.0 x2 (in x4 slot)
• 2x PCI-E x4 in x8 slots (1x PCI-E 2.0, 1x PCI-E 3.0)

These slots allow integration of additional controllers, network adapters or other interface cards as required by the target environment.

Network connectivity is provided by 4x RJ-45 1 Gb/s ports, enabling link aggregation, network redundancy or traffic separation according to infrastructure design. The platform does not include M.2 NVMe slots, which simplifies configurations focused on traditional SAS/SATA storage.

Power is delivered by two redundant 920 W power supplies with 80 Plus Platinum efficiency. Redundant PSUs improve availability, while high-efficiency certification helps reduce energy losses in continuous operation scenarios.

For external connectivity and service operations, the system is equipped with:

• 2x USB 3.0 (rear)
• 2x USB 2.0 (rear)

This configuration supports typical maintenance tasks, installation media and peripheral connections.

The Supermicro SuperStorage SSG-5028R-E1CR12L is covered by a 36-month manufacturer warranty, providing long-term support for deployments where predictable uptime and lifecycle management are required.
