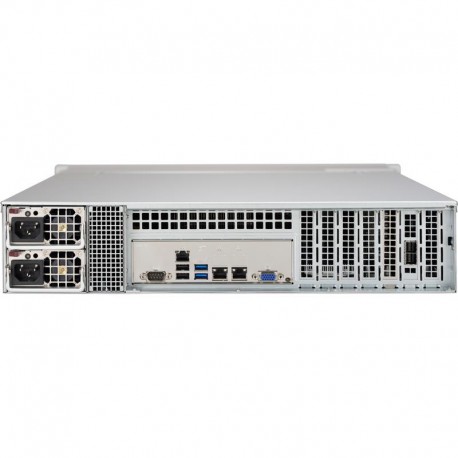

Supermicro SuperStorage SSG-6028R-E1CR12N

The Supermicro SuperStorage SSG-6028R-E1CR12N is a 2U storage-optimized server platform engineered for high-capacity, high-throughput deployments. It supports dual Intel Xeon E5-2600 v3/v4 processors in LGA 2011 sockets, enabling scalable multi-core performance for demanding storage and data-processing applications.

With 24 DIMM slots, the system supports up to 3TB ECC 3DS LRDIMM or 1.5TB ECC RDIMM/LRDIMM DDR4-2400MHz memory, providing a large, reliable memory footprint suitable for memory-intensive workloads and virtualized environments.

• Processor support: Dual-socket LGA 2011, Intel Xeon E5-2600 v3/v4 family, up to 145W TDP
• Memory capacity: 24 DIMM slots, up to 3TB ECC 3DS LRDIMM or 1.5TB ECC RDIMM/LRDIMM DDR4-2400MHz
• Form factor: 2U rackmount chassis
• Drive bays: 12x 3.5" hot-swap bays (optionally 2.5")
• Drive interface: SAS3 + SATA3 for flexible storage configurations
• PCIe expansion: 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8 slot)
• Network connectivity: 4x RJ-45 10Gb/s ports for high-bandwidth networking
• USB connectivity: 3x USB 3.0 (2 rear, 1 Type A), 2x USB 2.0 (front)
• M.2 NVMe slots: 0
• Power supply: 2x redundant 920W PSUs, 80 Plus Platinum efficiency
• Warranty: 36-month manufacturer warranty

The redundant 920W power supplies with 80 Plus Platinum efficiency increase power reliability while reducing energy losses, which is important in dense data center environments. The 12 hot-swap bays simplify maintenance and allow drive replacement or expansion without interrupting system operation.

Extensive PCI Express expansion capabilities enable integration of additional storage controllers, network adapters or specialized accelerator cards, depending on workload requirements. The four integrated 10GbE ports provide robust network throughput for storage traffic, virtualization clusters or backup infrastructures.

This platform is suitable where high storage density, memory capacity and continuous operation are required, while maintaining a technical focus on reliability, serviceability and network bandwidth.
