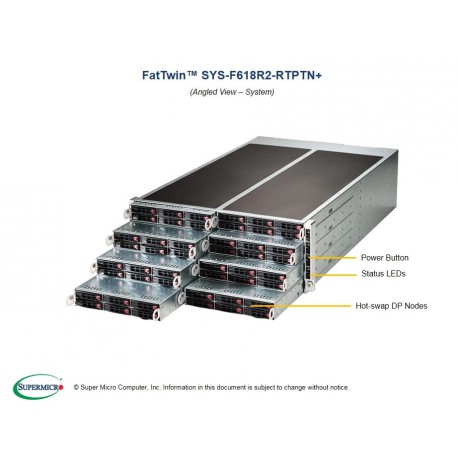

Supermicro SuperServer SYS-F618R2-RTPTN+

SKU: SYS-F618R2-RTPTN+

$12,247.63/brutto

$9,957.42/netto

The Supermicro SuperServer SYS-F618R2-RTPTN+ is a 4U rackmount server with dual LGA2011-3 sockets, supporting Intel Xeon E5-2600 v3/v4 processors (up to 145W TDP). It offers extensive memory capacity, redundant 2000W power supplies, multiple hot-swap bays, and high-speed network connectivity, making it suitable for demanding enterprise applications.

Quantity

Obecnie brak na stanie

Ask about product

Description
Product Details

Supermicro SuperServer SYS-F618R2-RTPTN+ is designed for enterprise environments that require high compute density and reliability. This 4U rackmount server supports dual LGA2011-3 (R3) sockets, compatible with Intel Xeon E5-2600 v3/v4 processor families (processors not included), with a maximum TDP of 145W per CPU.

Memory Capacity: Up to 16 RAM slots per node, supporting a maximum of 2TB ECC 3DS LRDIMM or 1TB ECC RDIMM to handle intensive workloads and virtualization needs.
Storage Flexibility: Equipped with six 2.5-inch hot-swap drive bays per node, supporting SAS3 and SATA3 interfaces, with optional support for 2x 2.5" NVMe drives. No M.2 NVMe slots are present.
Power and Redundancy: The system features a 2000W redundant power supply for enhanced operational reliability in mission-critical scenarios.
Expansion: Each node offers 1 PCI-E 3.0 x16 Low-profile and 1 PCI-E 3.0 x8 (Micro LP) slot for additional network or storage controllers.
Connectivity: Includes 2x RJ-45 10Gb/s Ethernet ports and 2 USB 3.0 ports per node for high-speed networking and peripheral connections.
Warranty: Backed by a 36-month manufacturer warranty.

This server provides a robust foundation for data centers, virtualization, and high-availability infrastructure deployments, focusing on reliability, expandability, and performance.

Reference SYS-F618R2-RTPTN+

Data sheet

Socket: LGA2011-3 (R3)
Rodzaj obudowy: 4U
Ilość gniazd procesorów: 2
Rodzina obsługiwanych procesorów: Intel Xeon E5-2600 v3/v4
Procesor wbudowany w płytę: Nie
Max. TDP procesora: 145W
Liczba slotów RAM: 16, na jednostkę
Maksymalna pamięć RAM: 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM, na jednostkę
Zasilacz: 2000W
Zasilacz redundantny: Tak
Wielkość kieszeni dyskowych: 2,5"
Liczba zatok dyskowych: 6
Interfejs dysków: SAS
Porty USB: 2 USB 3.0 ports, na jednostkę
Interfejs PCI: 1 PCI-E 3.0 x16 Low-profile, 1 PCI-E 3.0 x8 (Micro LP)na jednostkę
Złącza internetowe: 2x RJ-45 10Gb/s, na jednostkę
Liczba złącz M.2 NVMe: 0
Gwarancja producenta: 36 miesięcy
