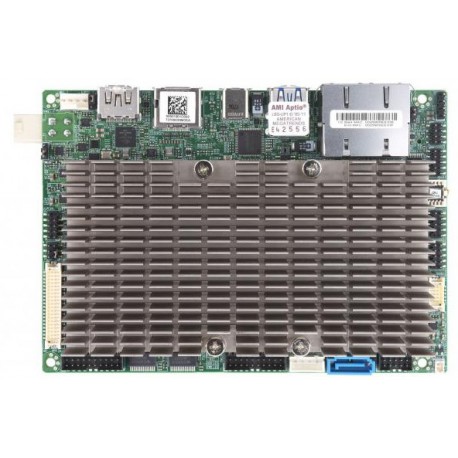

Supermicro MBD-X11SSN-E Motherboard

The Supermicro MBD-X11SSN-E is a compact 3.5" single board computer (SBC) engineered for embedded, industrial and edge applications that require low power consumption and consistent performance in a small footprint.

At its core, the board integrates an Intel® Core™ i5-7300U processor (2 cores / 4 threads, 2.6 GHz, 3 MB cache, 15 W TDP), eliminating the need for a separate CPU purchase and simplifying system integration.

• Processor & chipset
  • Socket type: FCBGA-1356 (soldered CPU package)
  • Onboard CPU: Intel® Core™ i5-7300U, 2C/4T, 2.6 GHz base, 3 MB cache, 15 W TDP
  • Number of CPU sockets: Single (1 integrated CPU)
  • Max supported CPU TDP: 15 W
• Memory subsystem
  • Memory slots: 2 x SO-DIMM
  • Max memory capacity: up to 32 GB
  • Memory type: Unbuffered Non-ECC DDR4-2400 SO-DIMM
• Board format
  • Form factor: 3.5" SBC
  • Designed for space-constrained and embedded chassis solutions
• Expansion & storage
  • 1 x mini-PCIe slot for wireless, I/O or other expansion modules
  • 1 x M.2 NVMe slot for high-performance SSD integration
• I/O interfaces
  • USB ports:
    • 4 x USB 2.0 (headers)
    • 2 x USB 3.0 (rear)
    • 1 x USB 3.1
    • 1 x USB 3.0 OTG header
  • Network:
    • 2 x RJ-45 1 Gb/s Ethernet ports for redundant or segmented networking
  • Audio:
    • ALC 888S HD Audio codec
    • 1 x HD Audio header Mic-in/Headphone-out (audio only support as specified)
• Reliability & lifecycle
  • Onboard CPU reduces mechanical points of failure compared to socketed designs
  • Manufacturer warranty: 36 months

With its integrated Intel® Core™ i5 processor, dual GbE, NVMe support and flexible USB and mini-PCIe expansion, the Supermicro MBD-X11SSN-E is suited for embedded systems, industrial control, kiosks and edge appliances where stable operation, compact size and long-term availability are critical.
