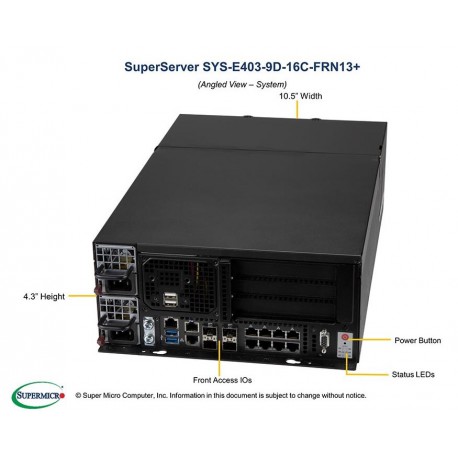

Supermicro SuperServer SYS-E403-9D-16C-FRN13+
SKU:
SYS-E403-9D-16C-FRN13+
$4,746.08/brutto
$3,858.60/netto
The Supermicro SuperServer SYS-E403-9D-16C-FRN13+ is a Box PC server featuring a single Intel Xeon D-2183IT 16-core/32-thread processor, support for up to 512GB ECC RAM, four 2.5" drive bays, redundant 800W power supplies, and multiple high-speed network interfaces for demanding enterprise applications.
Supermicro SuperServer SYS-E403-9D-16C-FRN13+ is an enterprise-grade Box PC designed for reliability and performance in critical IT environments.
- Processor: Integrated Intel Xeon D-2183IT with 16 cores and 32 threads, operating at 2.2 GHz and 100W TDP.
- Memory: Four RAM slots support up to 512GB ECC LRDIMM or 256GB ECC RDIMM (DDR4-2133MHz), enabling robust multitasking and virtualization capabilities.
- Storage: Four 2.5" drive bays with SATA/SAS interfaces allow flexible storage configurations. One M.2 NVMe slot provides additional high-speed storage expansion.
- Redundant Power: Dual 800W power supplies with 80 Plus Platinum certification ensure high energy efficiency and operational redundancy.
- Network: Features nine RJ-45 1Gb/s ports and four SFP+ 10Gb/s ports, supporting complex networking needs and high-throughput data transfer.
- Expansion: Includes three PCI-E 3.0 slots (configurable x16/x8), suitable for additional network, storage, or accelerator cards.
- Connectivity: Front panel offers two USB 3.0 and two USB 2.0 ports for peripheral connections.
- Warranty: Covered by a 36-month manufacturer warranty.
This server is built for enterprise applications requiring high availability, energy efficiency, and scalability, suitable for virtualization, cloud, and edge computing scenarios.
SYS-E403-9D-16C-FRN13+
Data sheet
- Rodzaj obudowy
- Box PC
- Ilość gniazd procesorów
- 1
- Procesor wbudowany w płytę
- Tak
- Number of Processors
- 1
- Procesor
- Intel Xeon D-2183IT 16C/32T 2.2GHz 100W
- Liczba slotów RAM
- 4
- Maksymalna pamięć RAM
- 512GB ECC LRDIMM; 256 GB ECC RDIMM DDR4-2133MHz
- Zasilacz
- 800W
- Zasilacz redundantny
- Tak
- Wielkość kieszeni dyskowych
- 2,5"
- Liczba mocowań na dyski 2,5"
- 4
- Interfejs dysków
- SATA
- Porty USB
- 2x USB 3.0 (front) 2x USB 2.0 (front)
- Interfejs PCI
- 3x PCI-E 3.0 x16 (1x FH 3/4L) 2x PCI-E 3.0 x8
- Złącza internetowe
- 9x RJ-45 1Gb/s; 4xSFP+ 10Gb/s
- Liczba złącz M.2 NVMe
- 1
- Liczba zasilaczy
- 2
- Wydajność energetyczna
- 80 Plus Platinum
- Gwarancja producenta
- 36 miesięcy
