Supermicro CloudDC A+ Server AS -2015CS-TNR

SKU: AS -2015CS-TNR

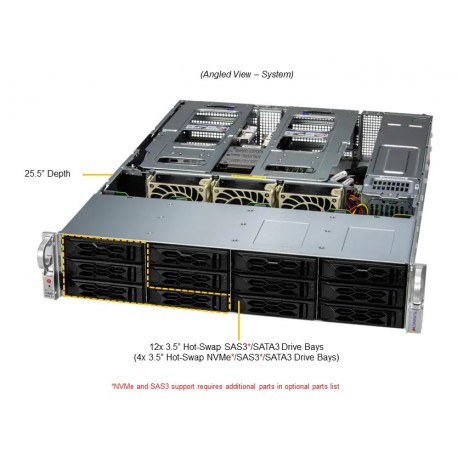

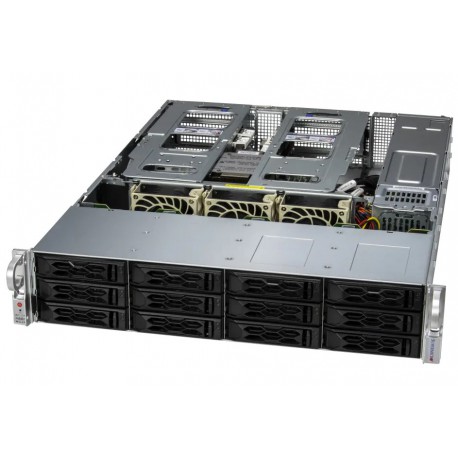

The Supermicro CloudDC A+ Server AS -2015CS-TNR is a 2U rackmount chassis supporting single-socket SP5 for AMD EPYC™ 9004 Series processors (up to 400W TDP), 12 DIMM slots for up to 3TB DDR5 ECC memory, redundant 1200W power supplies, 12 hot-swap 3.5" drive bays (NVMe/SATA/SAS), and advanced PCIe Gen5 expansion options.
Quantity

help_outlineAsk about product

I accept privacy policy rules

Supermicro CloudDC A+ Server AS -2015CS-TNR is engineered for high-performance data center deployments. This server features a 2U rackmount form factor and supports a single SP5 socket, compatible with 4th Gen AMD EPYC™ 9004 Series processors (CPU not included) with up to 400W TDP (please contact support for high TDP configurations).

  • Memory: 12 DIMM slots, supporting up to 3TB 3DS ECC REG RDIMM, DDR5-4800MHz
  • Storage: 12 hot-swap 3.5" bays (optional 2.5"), NVMe/SATA/SAS interface
  • Expansion: 2x PCI-E Gen5 x16 FHFL, 2x PCI-E Gen5 x16 FHHL, 2x PCI-E 5.0 x16 AIOM, 2x M.2 NVMe slots
  • Power Supply: Redundant 1200W PSU
  • USB: 2 USB 3.0 rear ports
  • Networking: Network connectivity via Slim-AIOM card option
  • Warranty: 36-month manufacturer warranty

This model is designed for scalable enterprise and cloud applications, offering high memory capacity, versatile storage options, robust power redundancy, and advanced PCIe Gen5 expansion capabilities. Its modular architecture supports evolving data center demands while ensuring reliability and serviceability.

AS -2015CS-TNR

Data sheet

Socket
SP5
Rodzaj obudowy
2U
Ilość gniazd procesorów
1
Rodzina obsługiwanych procesorów
4. gen. AMD EPYC™ 9004
Procesor wbudowany w płytę
Nie
Max. TDP procesora
400W (niektóre z procesorów z wysokim TDP mogą być wspierane jedynie w określonych warunkach - prosimy o kontakt w takich sytuacjach)
Liczba slotów RAM
12
Maksymalna pamięć RAM
3TB 3DS ECC REG RDIMM, DDR5-4800MHz
Zasilacz
1200W
Zasilacz redundantny
Tak
Wielkość kieszeni dyskowych
3,5"
Liczba zatok dyskowych
12
Interfejs dysków
NVMe/SATA/SAS
Porty USB
2 USB 3.0 ports (rear)
Interfejs PCI
2x Gen5 x16 FHFL, 2x Gen5 x16 FHHL, 2x PCI-E 5.0 x16 AIOM
Złącza internetowe
Możliwość zamontowania poprzez kartę Slim-AIOM
Liczba złącz M.2 NVMe
2
Gwarancja producenta
36 miesięcy
