Supermicro SuperStorage SSG-6039P-E1CR16L

Supermicro SuperStorage SSG-6039P-E1CR16L is a high-density 3U storage platform designed for demanding, continuously running environments. It combines dual-socket compute performance with large-capacity hot-swap storage and high energy efficiency.

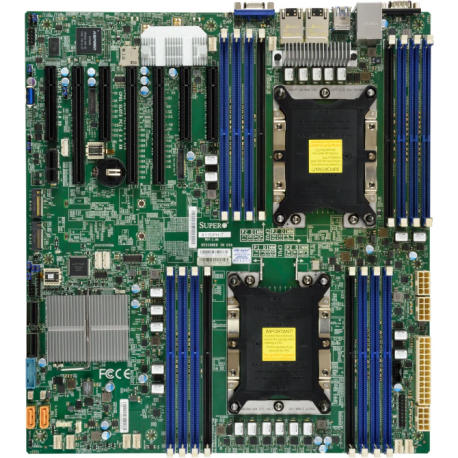

Compute platform

• Socket: LGA 3647
• CPU support: 1st/2nd Gen Intel Xeon Scalable
• Number of CPU sockets: 2 (dual-socket)
• Maximum CPU TDP: 205 W

Memory subsystem

• RAM slots: 16 DIMM slots
• Maximum memory capacity: up to 4 TB
• Supported memory: 3DS ECC DDR4-2933 RDIMM/LRDIMM
• Error correction: ECC for improved data integrity and system stability

Storage capabilities

• Form factor: 3U rackmount chassis
• Drive bay size: 3.5" (optional support for 2.5")
• Hot-swap drive bays: 16x front-access
• Drive interfaces (primary/optional): SAS3 + SATA3
• Onboard high-speed storage: 2x M.2 NVMe slots

Expansion and connectivity

• PCIe slots:
  • 3x PCI-E 3.0 x16
  • 4x PCI-E 3.0 x8
• Network interfaces: 2x RJ-45 10 Gb/s
• USB ports: 5x USB 3.0 (4x rear, 1x Type-A)

Power and reliability

• Power supply power: 1200 W
• Number of power supplies: 2 (redundant configuration)
• Energy efficiency certification: 80 Plus Titanium
• Redundant power: Yes, for higher availability and service continuity
• Manufacturer warranty: 36 months

Operational advantages

• High compute density with dual Intel Xeon Scalable processors for parallel workloads.
• Large memory footprint up to 4 TB to support memory-intensive and virtualized environments.
• Sixteen hot-swap 3.5" bays enable scalable capacity and simplified maintenance without system downtime.
• SAS3 and SATA3 support allows flexible configuration of performance and capacity tiers.
• Dual 10 GbE ports provide high-bandwidth network connectivity and efficient data transfer.
• Multiple PCIe 3.0 slots facilitate integration of HBAs, RAID controllers, high-speed NICs or accelerator cards.
• Redundant 1200 W 80 Plus Titanium power supplies increase availability and reduce energy losses.
