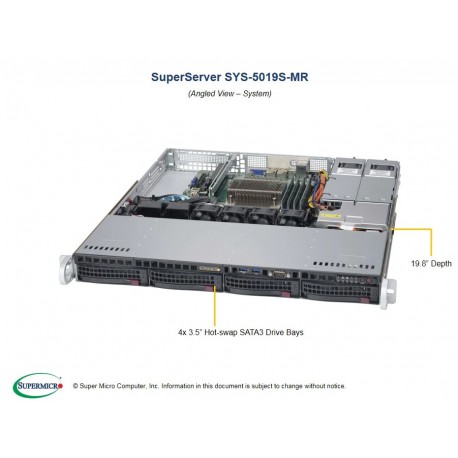

Supermicro SuperServer SYS-5019S-MR

The Supermicro SuperServer SYS-5019S-MR is engineered for reliable performance and scalability in data centers and enterprise environments. This 1U rackmount system is equipped with a single LGA 1151 socket, supporting Intel Xeon E3-1200 v5/v6 processors with a maximum TDP of 80W.

• Memory: Four DDR4-2400MHz ECC UDIMM slots, supporting up to 64GB RAM, ensure data integrity and improved performance for memory-intensive applications.
• Storage: The chassis supports up to four hot-swap 3.5" drives (optionally 2.5") with SATA/SAS interfaces, providing flexible storage configuration and easy maintenance.
• Expansion: One PCI-E 3.0 x8 slot (in x16 physical) allows for additional networking or storage controllers.
• Connectivity: Features five USB 3.0 ports (two rear, two optional, one Type A) and six USB 2.0 ports (two rear, four optional) for extensive peripheral support. Dual RJ-45 1Gb/s Ethernet ports enable high-availability networking.
• Power Supply: Equipped with two 400W redundant power supplies, rated 80 Plus Platinum, ensuring high energy efficiency and system uptime.
• Warranty: The server is covered by a 36-month manufacturer warranty for long-term reliability.

The SuperServer SYS-5019S-MR is designed for organizations requiring robust performance, high-availability features, and flexible storage options in a compact 1U form factor.
