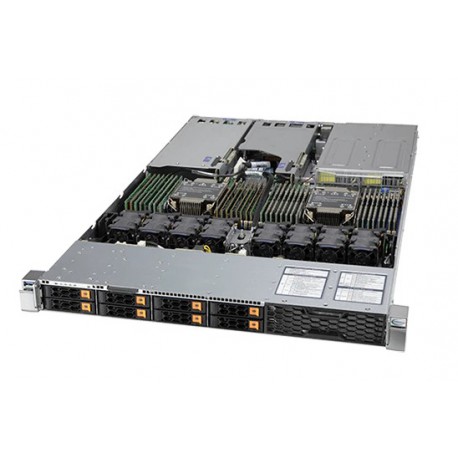

Supermicro Hyper SuperServer SYS-120H-TNR
SKU:
SYS-120H-TNR
The Supermicro Hyper SuperServer SYS-120H-TNR is a 1U high-density server platform designed for dual LGA 4189 (P+) sockets, supporting 3rd Gen Intel® Xeon® Scalable processors (up to 270W TDP). It features 32 DIMM slots (up to 8TB DDR4-3200MHz LRDIMM/RDIMM or Intel Optane), 8 hot-swap 2.5" bays (NVMe/SATA/SAS), redundant 1200W power supply, and versatile PCI-E 4.0 expansion.
Supermicro Hyper SuperServer SYS-120H-TNR is a high-performance, 1U rackmount server engineered for demanding enterprise environments. Designed to accommodate two LGA 4189 (P+) sockets, it supports the latest 3rd Gen Intel® Xeon® Scalable processors with a maximum TDP of 270W (processors not included).
- Memory Capacity: 32 DIMM slots supporting up to 8TB DDR4-3200MHz LRDIMM/RDIMM or Intel Optane (12TB DRAM maximum).

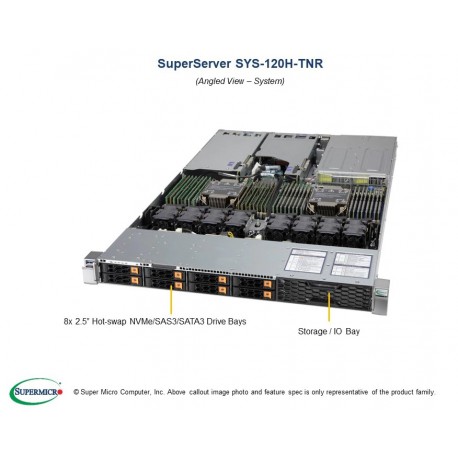

- Storage Flexibility: 8 hot-swap 2.5" drive bays with support for NVMe, SATA, and SAS interfaces, plus 2 M.2 NVMe connectors for high-speed storage expansion.
- Expansion Options: Three PCI-E 4.0 x16 slots (1x 6.6" and 2x 10.5" full-height), allowing for advanced networking, storage, and GPU configurations.
- Power Supply: 1200W redundant power units ensure continuous operation and system reliability.
- Connectivity: 3 USB 3.0 ports (1 front, 2 rear) and AIOM slot for flexible network card installation.
This server is ideal for virtualization, high-performance computing, and enterprise workloads requiring robust memory, storage, and expansion capabilities. A 36-month manufacturer warranty provides added assurance for mission-critical deployments.
SYS-120H-TNR
Data sheet
- Socket
- LGA 4189 (P+)
- Rodzaj obudowy
- 1U
- Ilość gniazd procesorów
- 2
- Rodzina obsługiwanych procesorów
- 3rd Gen Intel® Xeon® Scalable
- Procesor wbudowany w płytę
- Nie
- Max. TDP procesora
- 270 W
- Liczba slotów RAM
- 32
- Maksymalna pamięć RAM
- 8TB DDR4-3200MHz LRDIMM/RDIMM / Intel Optane (12TB DRAM)
- Zasilacz
- 1200W
- Zasilacz redundantny
- Tak
- Wielkość kieszeni dyskowych
- 2,5"
- Liczba zatok dyskowych
- 8
- Interfejs dysków
- NVMe/SATA/SAS
- Porty USB
- 3 USB 3.0 ports (1 front; 2 rear)
- Interfejs PCI
- Slot 1: PCI-E 4.0 x16 FH, 6.6"L, Slot 2: PCI-E 4.0 x16 FH, 10.5"L, Slot 3: PCI-E 4.0 x16 FH, 10.5"L
- Złącza internetowe
- Możliwość zamontowania poprzez kartę AIOM
- Liczba złącz M.2 NVMe
- 2
- Gwarancja producenta
- 36 miesięcy
