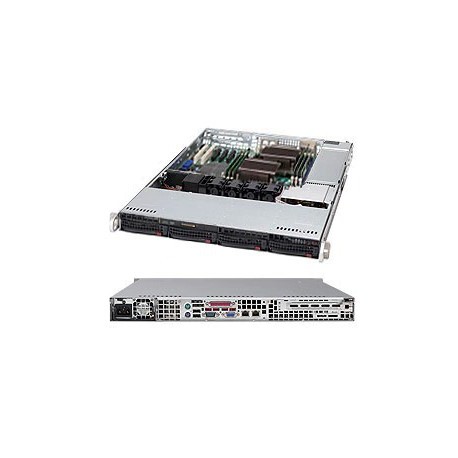

Supermicro CSE-813MFTQC-350CB

The Supermicro CSE-813MFTQC-350CB is a 1U rackmount server chassis engineered for compact, high-availability environments. It combines efficient power delivery with flexible storage options, making it suitable for a wide range of data center and edge deployments.

Key technical parameters

• Form factor: 1U rackmount chassis
• Power supply: 350W, single, non-redundant
• Energy efficiency: 80 Plus Platinum
• Drive bays (front): 4x hot-swap 3.5" bays
• 2.5" support: Possible with additional adapter (not included)
• Backplane: SAS/SATA 12Gb/s
• Manufacturer warranty: 36 months

Power and efficiency

• 350W PSU is designed for typical 1U server configurations, helping balance power headroom and overall rack energy density.
• 80 Plus Platinum efficiency reduces power losses and heat output, supporting lower operating costs and easier thermal management in dense racks.

Storage and connectivity

• 4x hot-swap 3.5" bays enable quick drive replacement without powering down the system, supporting continuous operation and simplified maintenance.
• 12Gb/s SAS/SATA backplane allows integration with modern HDDs and SSDs, providing a solid basis for performance-oriented or capacity-oriented configurations.
• 2.5" drive option via additional adapter offers flexibility to mix high-performance SSDs with traditional 3.5" disks, depending on workload needs.

Operational reliability

• Hot-swap drive design minimizes service windows and supports high availability scenarios.
• 36-month manufacturer warranty provides long-term support for continuous, 24/7 deployments.

This chassis is targeted at professional environments that require a compact 1U platform with efficient power usage and hot-swap storage, such as virtualization hosts, application servers, or storage-focused systems, depending on the chosen internal components.
